When you think of electricity generation, what comes to your mind first? Probably the traditional ways of generating electricity?
However, the times have changed, and government and public bodies are taking initiatives that are more eco-friendly and sustainable.
With the latest concepts like wind turbine generator, people are moving towards better future of electricity generation.
However, this field is relatively new, so you might be having many questions like –
👉 What is a wind turbine generator,
👉 How does a wind turbine generator system work,
👉 What are the different types of wind turbines,
👉 What are the main components of a wind turbine
👉 What is a wind farm,
👉 How windmills are built and
👉 How does a wind turbine work
Today, let’s get answers to all of your questions in detail! Watch the video below to get an overview about wind turbines.
Let’s first start with the simple meaning and definition of a wind turbine.
What is a Wind Turbine Generator?
Simply put, a wind turbine generator is a device that converts the energy of the wind into electricity. It consists of large blades that spin when the wind blows, turning a rotor connected to a generator. The generator then produces electricity.
The basic function of a wind turbine generator system is simple: capture wind energy and turn it into usable power. The wind’s movement causes the blades to rotate, which powers the generator.
Windmill projects are usually placed in areas with strong, consistent winds, like open fields or offshore locations, to maximize their energy production. You can start a wind turbine project to provide renewable sources of energy for homes and businesses.
Now that you know what a wind turbine is, let’s understand how does a wind turbine work.

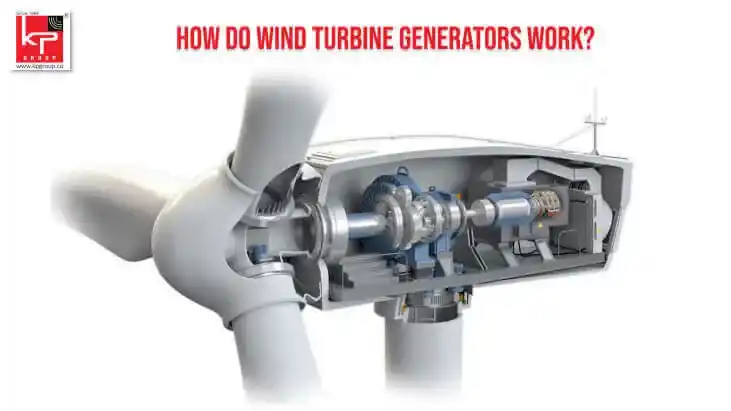

How Do Wind Turbine Generators Work?
To put it in simple way, we can say that wind turbines work by using the wind’s kinetic energy to generate electricity.
When wind blows, it causes the blades of the turbine to spin. The blades are connected to a rotor, which turns a shaft connected to a generator. As the rotor turns, it activates the generator, producing electricity. This electricity travels through cables to a power grid, where it’s distributed for use.
The turbine’s system is designed to adjust the blade angle to capture the optimal wind speed, and modern turbines can operate in winds ranging from about 6 to 55 mph. In this way, wind energy is converted into usable electrical power.
Now that you know what a wind turbine generator is and how it functions, let’s have a look at the types of wind turbines and get a quick idea about them.
Types of Wind Turbines
There are many wind turbine generator types based on how they are designed and functions. However, in this guide, we will mainly look into the Horizontal-Axis and Vertical-Axis wind turbines.

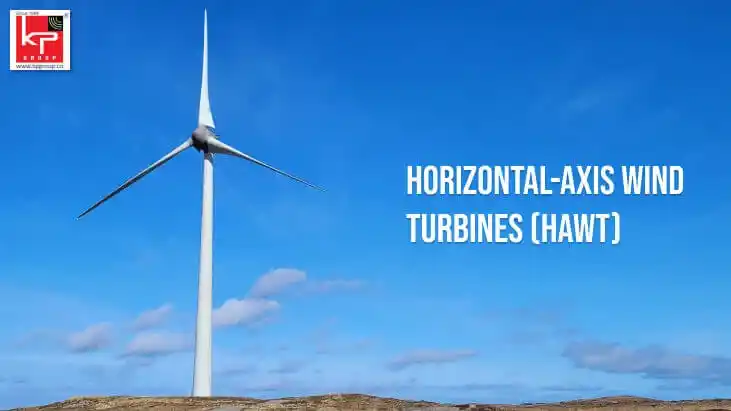

- Horizontal-Axis Wind Turbines (HAWT)
Horizontal-Axis Wind Turbines (HAWTs) are the most common type of wind turbine – the ones that all of us would have seen the most.
They have blades that spin around a horizontal axis, like a traditional airplane propeller. As they have horizontal axis, they are highly efficient and can generate more electricity due to their larger size and ability to capture wind from all directions.
HAWT are generally used in large wind farms to generate and supply power to grids.
- Vertical-Axis Wind Turbines (VAWT)
As opposed to HAWT, vertical-axis wind turbines (VAWT) have blades that rotate around a vertical axis. As they have vertical blades, they can capture wind from any direction without needing to be adjusted.
VAWT are more suitable for windmill projects where there’s smaller space or the location is in the urban area. As they can be adjusted well in smaller space and unpredictable wind patterns, they are often used for residential or small-scale power generation.
Now regardless of the wind turbine generator types, all of them have some main and common components that build a wind generator system. Let’s have a quick look at these components of a wind turbine.

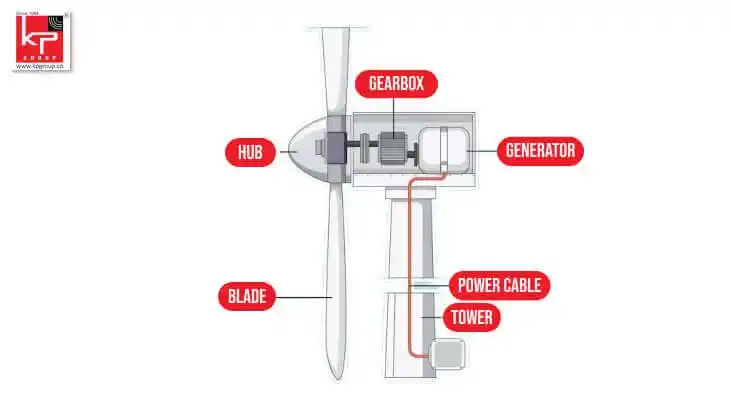

Main Components of a Wind Turbine
For a wind turbine generator to function well, there are many components that need to be in place. Here is the list of components that convert wind energy into electricity.
- The Foundation
Foundation in the wind turbine acts like the base structure that supports the entire wind turbine.
This foundation is typically made from concrete or steel while being deeply rooted in the ground or seabed to make sure wind turbines can have stability, especially for tall turbines in high-wind areas.
- The Tower
As the name suggests, the tower is the tall, vertical structure that holds the turbine’s rotor and nacelle high above the ground to access stronger winds.
Similar to the foundation, the tower is made of steel or concrete to withstand harsh weather conditions while supporting heavy loads.
- The Nacelle
Another component of wind turbine generator is nacelle. It is an enclosed component at the top of the tower that contains components like the generator, gearbox, and drivetrain. The main function of nacelle is to protect these parts from the elements and make sure everything operates smoothly.
Moreover, the nacelle also contains a yaw system to rotate the turbine towards the wind – making the wind generator system more efficient.
- Drive-Train and Gearbox
Another important component of a wind turbine generator is drive-train and gearbox. The drivetrain is the mechanical system that transfers the rotational energy from the rotor to the generator while gearbox regulates the speed, ensuring the generator receives the correct rotation rate to produce electricity efficiently.
- Generator
Moving next, generator in the wind turbine generator converts the mechanical energy from the rotating rotor into electrical energy. It uses electromagnetic induction to produce electricity, which is then transmitted to the grid for use.
- The Rotor and Hub
The rotor in the wind turbine generator system consists of the blades and the hub. Here, the blades capture the wind’s energy and rotate the hub. Moreover, rotor’s main role is to maximize the wind capture and energy production.
- Electronics & Control
Lastly, there are many small electronics and control parts used in wind turbine generators that drive the whole machine. Here is the list of those components –
Yaw System: The Yaw system in wind turbine makes sure that the turbine stays aligned with the wind by rotating the nacelle. As yaw system adjusts the direction of the turbine based on the wind direction, it helps in capturing energy to their maximizing levels.
Pitch System: The pitch system adjusts the angle of the blades to optimize their efficiency. It can turn the blades to a more horizontal position during strong winds to prevent damage.
Braking System: The braking system stops the turbine, when necessary, for maintenance or in extreme weather, ensuring safety and protecting the turbine from damage.
Cooling System: The cooling system keeps the turbine’s components, especially the generator, from overheating by dissipating heat and maintaining optimal operating temperatures.
The Blades
The blades are typically made of lightweight, durable materials like fiberglass or carbon fiber. Their design, often aerodynamically shaped, allows them to efficiently capture wind energy and convert it into rotational motion, maximizing the turbine’s performance.
Now that you know what exactly a wind turbine generator is, let’s understand what a wind farm is and how does that work.
What is a Wind Farm?
In simple words, a wind farm is a collection of wind turbines located in the same area. All these wind turbines work together to generate electricity at a scale.
In the wind farm, each wind turbine captures wind energy through its blades, which then turns a generator to produce power. The more turbines there are, the more energy is generated.
The location of these wind farms can be on land or offshore, depending on the space and wind conditions.

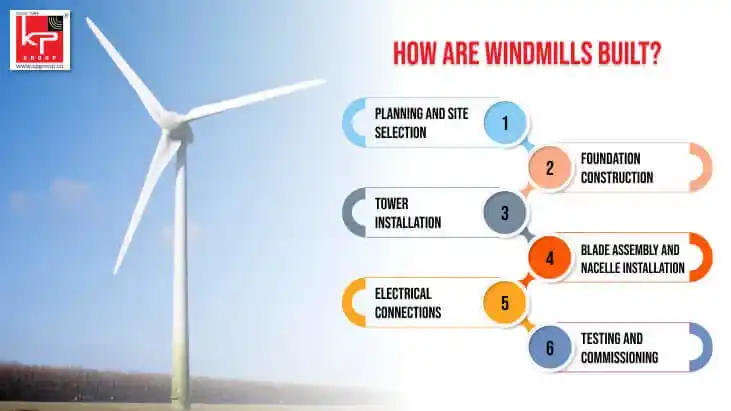

How are Windmills Built?
There are many steps involved in building a windmill. Let’s have a quick look at each of these steps for your reference.
Step – 1: Planning and Site Selection:
The first step of building windmills is selecting a perfect location for the farm. A group of engineers assess the environmental factors like wind speed and land conditions to check if the site is perfect for a wind farm.
Step – 2: Foundation Construction:
Once the site/location is finalized, the next step is to install a strong foundation to support the turbine. This foundation is built with concreate and steel to make sure it is strong enough to withstand tough weather conditions.
Step – 3: Tower Installation:
After selecting the site and building a strong foundation, the next step is to install the towers that are made of steel. These towers lift crane sections into their place.
Step – 4: Blade Assembly and Nacelle Installation:
The next step in building the wind farm is attaching blades to the tower. These blades are typically made from fiberglass or composite materials. Once blades are attached, wind turbine installers install nacelles in the top compartment of the tower.
Step – 5: Electrical Connections:
As the second last step, when the wind turbine is installed, you need to connect the grid through electrical cables so that it can send generated electricity to the unit.
Step – 6: Testing and Commissioning:
Finally, before you can make the turbine fully functional and live, you need to run a trial to make sure it works properly before it begins producing electricity.
After knowing all about how wind turbines and farms if you are curious to know its investment possibilities and be one of the renewable energy solution providers? If yes, get in touch with our team, and we will take it further from there!
Frequently Asked Questions:
Ans: A wind turbine generates electricity by using the wind to turn its blades. The blades are connected to a rotor, which spins a generator inside the turbine. This movement converts kinetic energy from the wind into mechanical energy, which is then transformed into electrical energy by the generator. the long run. By focusing on energy efficiency, durability, and minimal environmental impact, these plants can operate effectively for decades.
Ans: For wind turbines to generate electricity, the wind speed needs to be at least 3-4 meters per second. To generate electricity at optimal efficiency, the wind speed needs to be of 12-15 meters per second. energy generated during the day for use at night or during cloudy periods. This improves reliability, reduces waste, and ensures a consistent energy supply, contributing to overall sustainability.
Ans: Wind farms are generally located in areas where there’s a strong, consistent wind. Think of areas such as coastal regions, open plains, and mountain ridges. Plus, offshore wind farms are also possible in areas where there’s higher wind speed. the efficiency and lifespan of solar energy plants, these strategies contribute to cleaner, greener energy production.
